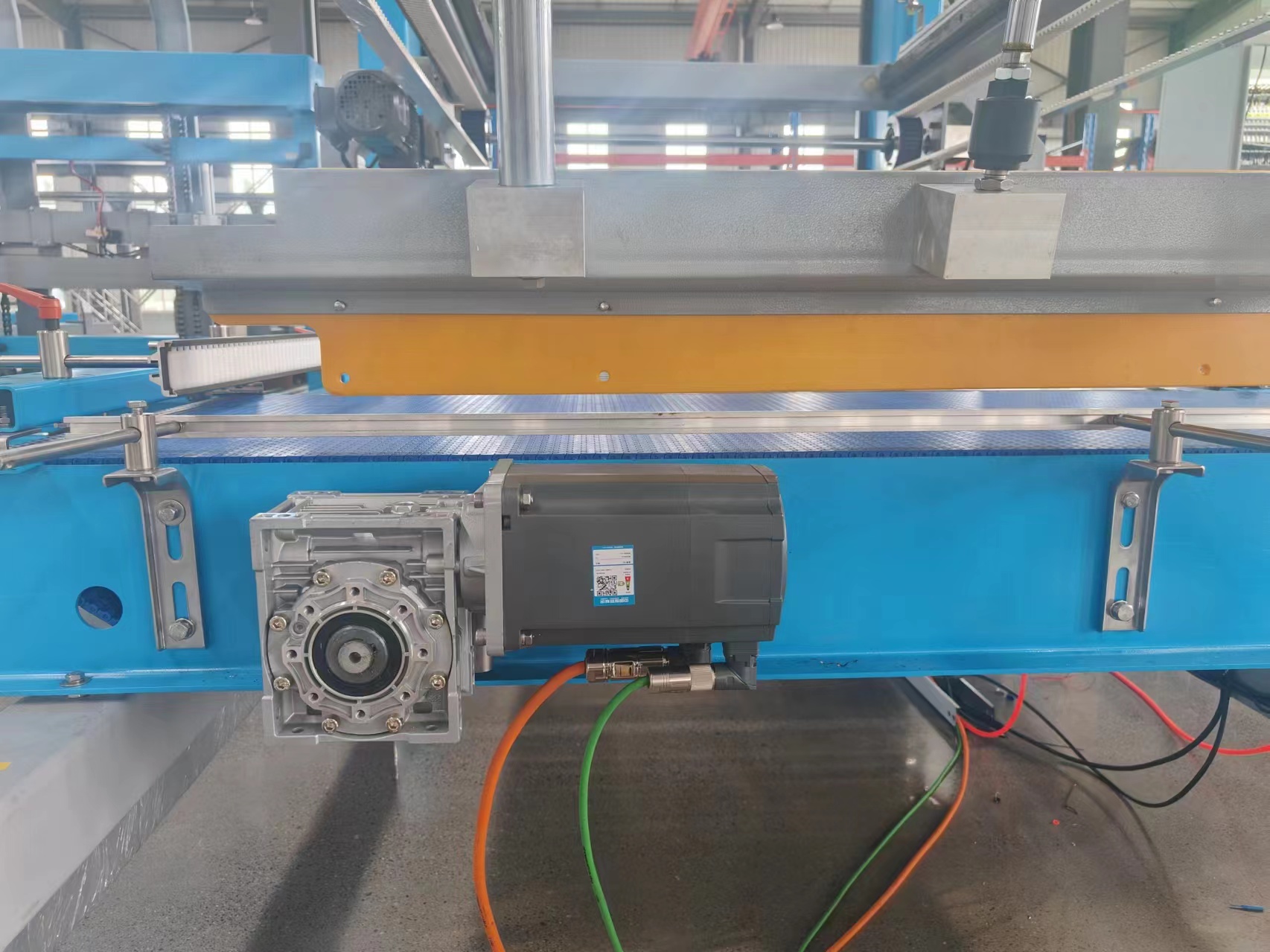

Product Profile

Stacker is to stack the cartons loaded into containers on pallets (wood and plastic) according to a certain arrangement for automatic stacking, which can be stacked in multiple layers, and then automatically transported to the actual supporting station, so as to facilitate forklift transportation to the warehouse for storage. The equipment adopts imported brand PLC + touch screen control to realize intelligent operation and management, which is simple and easy to master, and the adjustment of various marshalling forms is convenient. It can greatly reduce the labor force and labor intensity, and improve the production line management level of the enterprise.

It adopts the concept of high speed, stability and space saving. Separate tray is adopted, which is faster and saves more space. One machine is multi-purpose and can be adjusted quickly. It can be used for stacking products of various specifications.

Scope of application: stacking of cartons, transfer frames and heat shrinkable film wrapped products.

technical parameters

? standard capacity: 30 ~ 40 boxes / min

Note: the stacking speed is related to the pallet size, the width direction of the incoming box, the carton size and the grouping form of each layer.

? operation mode: man-machine interface

? maximum load of each floor: 260kg

? maximum load per pallet: 1600kg

? maximum stacking height: 1750mm (including tray height)

? motor power supply / power: three-phase five wire, AC 380V / 50Hz, 15kw

? control voltage: DC 24V

? air consumption: 500nl / min (air consumption: 6-8kg / cm2)

? size of gas pipe interface φ 10mm

? equipment size: (L) 8000mm × (W)5200MM × (H)3545MM

? environmental conditions:

Altitude: 3 ~ 2000m above sea level

Ambient temperature: 0 ℃ ~ 40 ℃

Humidity: 40% ~ 95%

? equipment weight: 7500kg

? requirements for pallet:

1) . maximum pallet size: l × W × H=1300 × one thousand and two hundred × 150（mm）

2) . minimum pallet size: l × W × H=1000 × one thousand × 150（mm)

3) . the pallets are stacked up and down in order, mainly in the form of Sichuan type and Tian type, and the materials can be iron, plastic, wood, etc;

4) . fork holes for stacking shall be provided on the long side of the pallet.

5) The pallet shall be able to be transported stably on the roller.

? relevant material requirements:

1) Product weight requirements: single combination ≤ 12kg, layer weight ≤ 260kg

2) Applicable production line height: 1050mm or 750mm, stack height: 550mm.

3) . product combination size requirements (when entering the box with a wide face):

Length 170mm ≤ L ≤ 500mm

Width 170mm ≤ w ≤ 400mm
